Case Study Overview

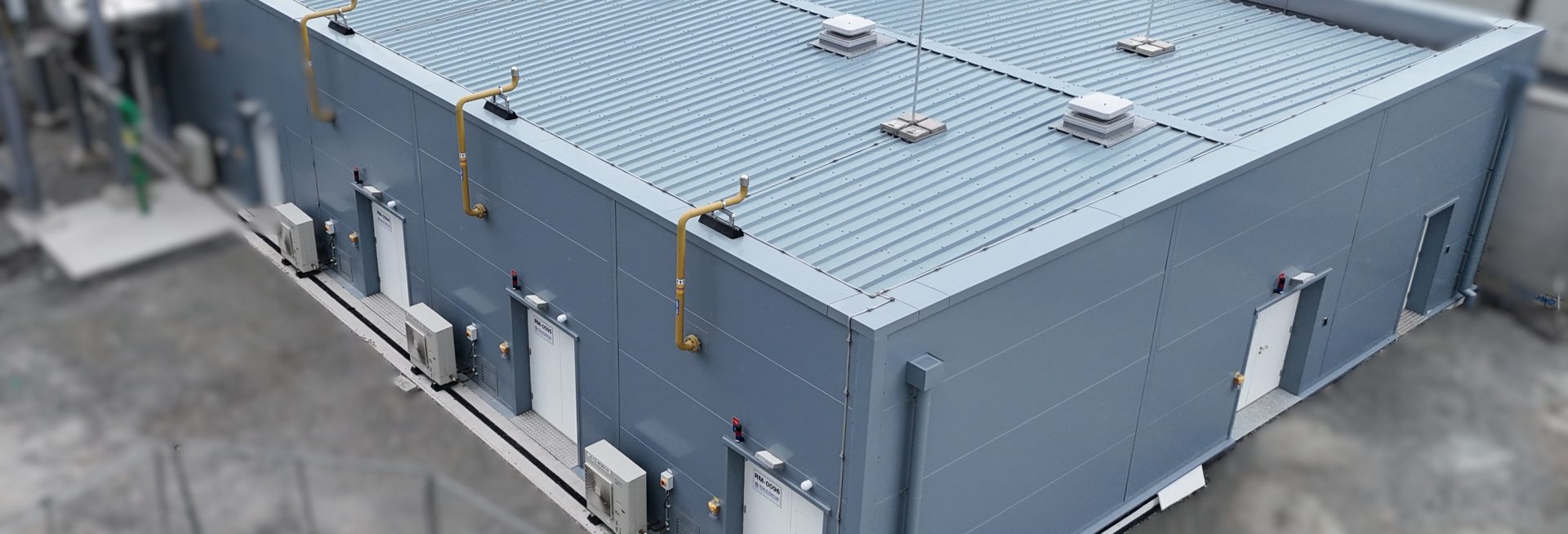

Fully modularized off site at BAF manufacturing facilities. Four fully independent R717 Ammonia chiller & heatpump modules with integrated gas detection, extract, air conditioning, controls, and instrumentation.
Each chiller module provides 1MW of chilling and up to 1.2MW of heating. The entire system is designed to be shipped by the road network in 10 sections and re-assembled on the client site.
- Independent modularized electrical switchroom with fully packaged automation and HMI incorporated.
- Insulated weir glycol tank sized for entire site demand, packaged internally within the module.
- Primary & secondary pumpsets for site packaged internally within the module.
- Sabroe – JCI Chillpac 116 chillers containing reciprocating VSD controlled compressors.
- Chiller system designed to be site installed over bund, with the entire module clad on site to match existing client facilities.
Chilled water provided at temperatures varying down to 2°C.
LPHW provided at temperatures varying up to 45°C.
