Case Study Overview
Chiller package servicing new cold storage facility.
HT & LT chillers, full duty standby.
285 kW LT capacity @-26Deg C supply temp each.
220 kW HT capacity @-9Deg C supply temp each.
VSD Chillers on R717 refrigerant.

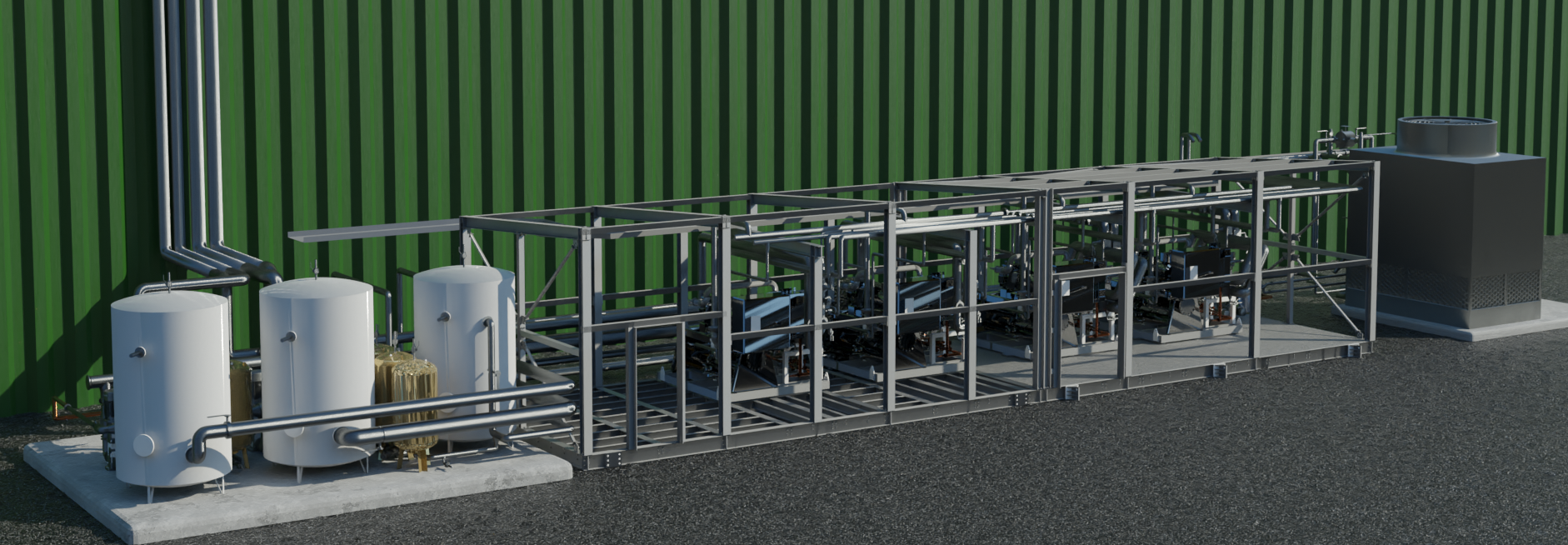

Comes supplied in an EN1090 EXC2 certified structure designed specifically for the project. Containing compressor plant room, separate Switch room and pump skid. Certified lifting beams for compressors and motors.
Full duty/standby pump skids.
Heat recovery package for freezer underfloor heating.
PLC control of evaporators, pumps, modulating valves and condenser.
